Home > BOE LCD Display >

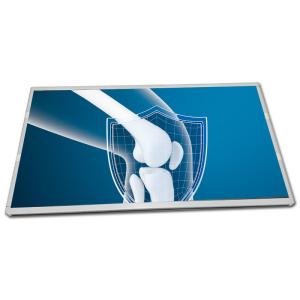

350nits BOE LCD Display 21.5 Inch GV215FHM-N10 TFT Panel Display

Product Categories

Shenzhen Mingqi Display Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : BOE

Model Number : GV215FHM-N10

Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,0 pieces per day

Delivery Time : 1~7 working days

Packaging Details : Customized

Size (inch) : 21.5

Brightness (cd/m²) : 350

Resolution : 1920×1080

Active Area (W*H) : 476.64×268.11

Outline Dimension (W*H*T) : 485.6×292.2×10.7

Operating Temperature : -20 ~ 70 °C

Storage Temperature : -30 ~ 80 °C

Viewing angle(RLUD) : 85/85/85/85

Viewing Direction : IPS

Contrast Ratio : 1000

LED Lifetime (hrs) : 30K

Interface : LVDS 30

Contact Now

21.5 inch BOE GV121WXM-N80 Industry Display with 1920×1080 Pixels Liminance 350nit TFT Panel Display

BOE GV215FHM-N10 Application Details
Basic Detail :	Manufacturer	BOE	Model Name	GV215FHM-N10
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	21.5 inch	Designed For	Industrial,Digital Signage
Maximum Ratings :	OP Temperature	-20 ~~ 70 °C	ST Temperature	-30 ~~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	Landscape/Portrait,WLED Backlight,Matte
BOE GV215FHM-N10 Optical Details
Basic Detail :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(Tr+Td) ms
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
BOE GV215FHM-N10 Mechanical Details
Pixel Features :	Number of Pixel	1920(RGB)×1080, FHD	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.08275×0.24825 mm (H×V)	Pixel Pitch(W×H)	0.24825×0.24825 mm [102PPI]
Physical Size :	Active Viewing	476.64×268.11 (H×V)	Bezel Area(mm)	-
	(mm)	476.64×268.11 (H×V)	Bezel Area(mm)	-
	Outline Dim.	485.6(H) × 292.2(V)	Depth(mm)	8.2/11.2(Typ./Max.) mm
	(mm)	485.6(H) × 292.2(V)	Depth(mm)	8.2/11.2(Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:09	Shape Style	-
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass	1.93Kgs (Typ.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

Product Tags:
