Product Information:
| Manufacturer | INNOLUX |
| Model Name | G121XCE-L01 |
| Screen Size | 12.1 |
| Pixel Number | 1024(RGB)×768, XGA 105PPI |
| Active Area(mm) | 245.76(W)×184.32(H) mm |
| Outline(mm) | 260.5(W)×204(H) ×8.9(D) mm |
| Bezel Area(mm) | 249.0(W)×187.5(H) mm |
| Treatment | Hard coating (3H), Anti-Glare |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Response | 13/12 (Typ.)(Tr/Td) |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Panel Weight | 490/510g (Typ./Max.) |
| operating frequency | 60Hz |
| Touchscreen | Without, RTP+CTP for options |
| Signal Type/interface Type | LVDS(1 ch, 8 bit) , 20 pins,connector |
| Voltage Supply | 3.3V (Typ.) |
| Temperature | Storage Temp.: -40 ~ 90 °C |
| Operating Temp.: -30~ 85 °C |
| Package | As request |
Features:

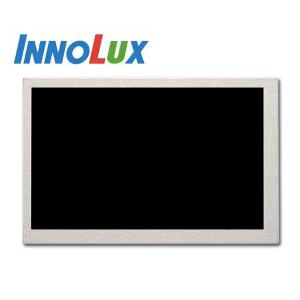

- Product Name: 12.1 inch INNOLUX LCD Display
- Wide Temperature: -30~ 85 °C
- Viewing Direction: IPS
- High Brightness lcd: 600 cd/m²
- Wide Viewing angle(RLUD): 89/89/89/89
This industrial touch screen monitor features an INNOLUX LCD display with a resolution of 1024*768 and viewing direction of IPS.
Equipped with a luminance of 600 nits, this INNOLUX LCD provides bright and clear images even in environments with high ambient lighting. Its 1024 x 768 resolution ensures that every detail is displayed accurately, making it ideal for applications that require precise imaging.
With an LVDS 20 interface, this industrial TFT display is easy to connect and integrate into various systems. Its compatibility with various devices and systems ensures that it can be used in a wide range of applications.
Overall, the INNOLUX LCD Display is an exceptional MIL spec LCD display that offers high-quality imaging and reliable performance. Its rugged construction and advanced features make it perfect for use in demanding industrial environments.
Applications:
The INNOLUX LCD Display product, model number G121XCE-L01, is a high-quality LCD TFT module that is ideal for a variety of applications, it certified by ISO 9241, IEC62341, JEITA CP-3451, ANSI/AAMI ES60601-1-2, and IEC 60068. This ensures that the product meets high-quality standards and can be used in a wide range of scenarios.
One such application is in the medical field. The product's ANSI/AAMI ES60601-1-2 certification ensures that it can be used safely in medical devices. It is also suitable for use in industrial control systems, automotive displays, and other applications where a high-quality display panel is required.
The INNOLUX LCD Display product has a viewing angle of 89/89/89/89 (RLUD) and an operating temperature range of -30℃～85℃, making it suitable for use in a variety of environments. The storage temperature range is -40 ~ 90 °C, ensuring that the product can be stored safely when not in use.
Support and Services:
INNOLUX provides technical support and services for its LCD displays to ensure customer satisfaction. Our technical support team is available to assist with any product-related inquiries, troubleshooting, and technical issues. We also offer repair and maintenance services to extend the lifespan of the product and minimize downtime. Our services include product installation, calibration, and testing to ensure optimal performance. INNOLUX is committed to delivering high-quality products and services to our customers.
Packing and Shipping:
Product Packaging:
The INNOLUX LCD Display product will be packaged with utmost care to ensure that it is not damaged during transit. The product will be wrapped in bubble wrap, placed in a sturdy box, and sealed securely. The box will be labeled with the product name and model number for easy identification.
Shipping:
The INNOLUX LCD Display product will be shipped using a reliable and reputable carrier service. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided at the time of purchase. The customer will receive a tracking number to track the shipment of their product.
