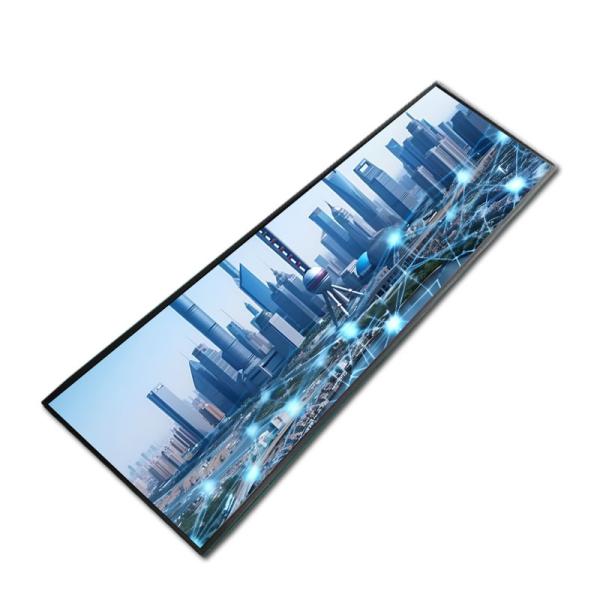

86 inch DV860FBM-N10 BOE Bar Type LCD Display with V-by-One 51 Interface 3840*600 High Resolution
Product Information:
| Brand | BOE |
| Model P/N | DV860FBM-N10 |
| Diagonal Size | 86" (Native bar) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×600 45PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 2148.48(W)×335.7(H) mm |
| Bezel Opening | |
| Outline size | 2171.08(W)×359.5(H) ×41.29(D) mm |
| Surface | Antiglare (Haze 25%) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 13 (Typ.)(G to G) |
| Display Colors | 1.07B 72% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 13.5Kgs (Max.) |
| Signal Interface | V-by-One 8 lane , 51 pins Connector |
| Input Voltage | 12V (Typ.) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
Features:
- Product Name: BOE LCD Display
- High Brightness display
- Glare resistance
- Shock and vibration resistance
- Wide Viewing angle(RLUD): 89/89/89/89
- Long LED Lifetime (hrs): 50K
This BOE LCD Display is a high-quality product from a reliable display panel factory, providing excellent performance and durability. As a leading lcd screen factory and lcd display manufacturer, BOE is committed to delivering outstanding products to meet your display needs.
Applications:
- Retail stores
- Shopping malls
- Hospitals
- Hotels
- Airports
- Train stations
- Conference rooms
- Command centers
- Public transportation
Support and Services:
Our Product Technical Support and Services for BOE LCD Display include:
- On-site technical support
- 24/7 phone and email support
- Troubleshooting guidance and support
- Product repair and replacement services
- Firmware and software updates
- Product training and education
Packing and Shipping:
Product Packaging:
- BOE LCD Display
- Protective foam padding
- User manual
Shipping:
- Ships within 1-2 business days
- Free standard shipping within the United States
- International shipping available at additional cost
- Shipped in a secure and protective box
